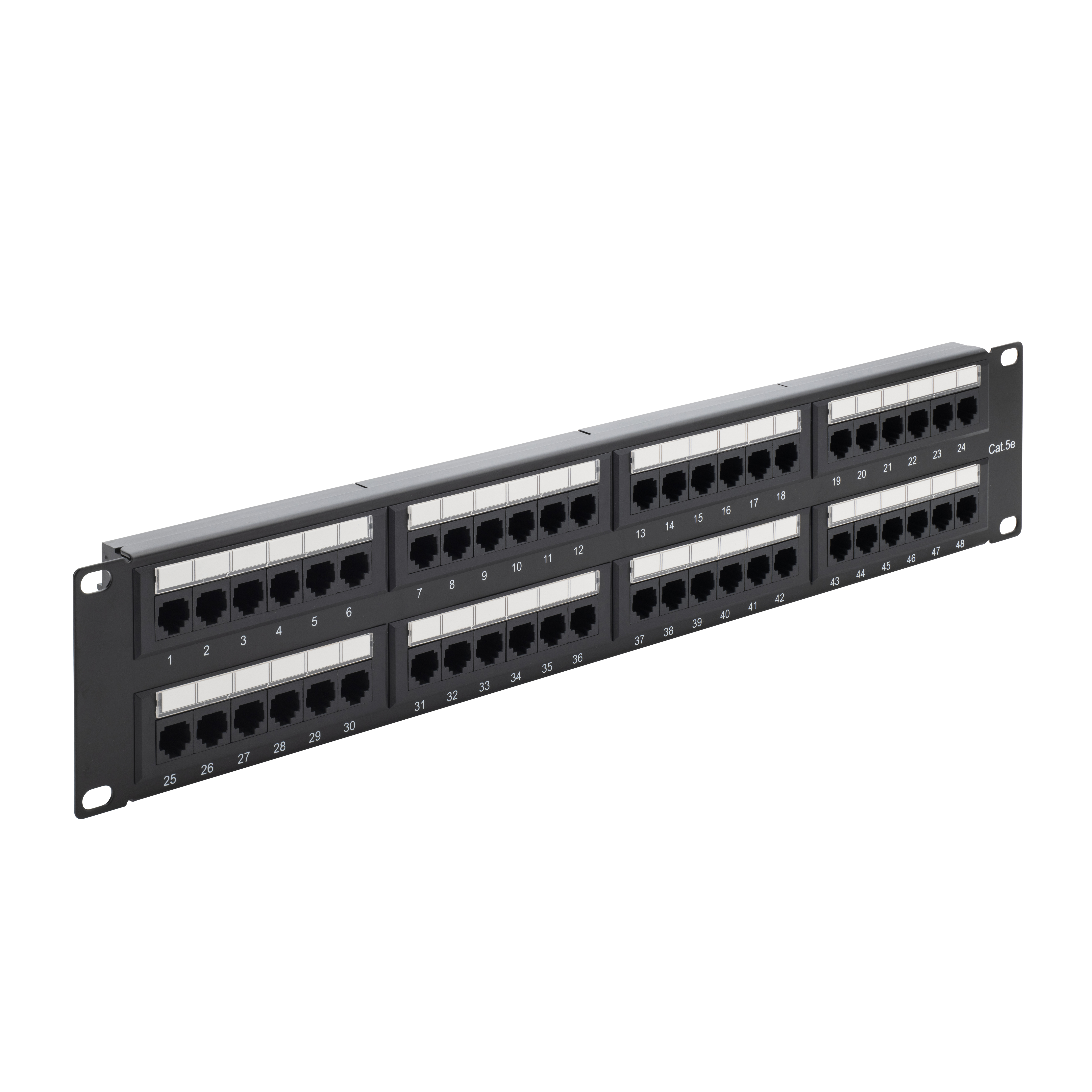

48 Port Patch Panel (Cat5e) IDC Punch Down 19 inch
(UK Mainland & stock items only). Pallet deliveries order before 12 noon.
×
×
×
DeliveryNext day from only £6.95
(UK Mainland Only)
Need help?
2% DiscountWhen you order online
Not sure if this is right for your needs?Why do you need it?
You need to connect various devices such as PC's, printers etc to a central server or switch. The Cat5e patch panel will be the heart of your network.
What does it do?

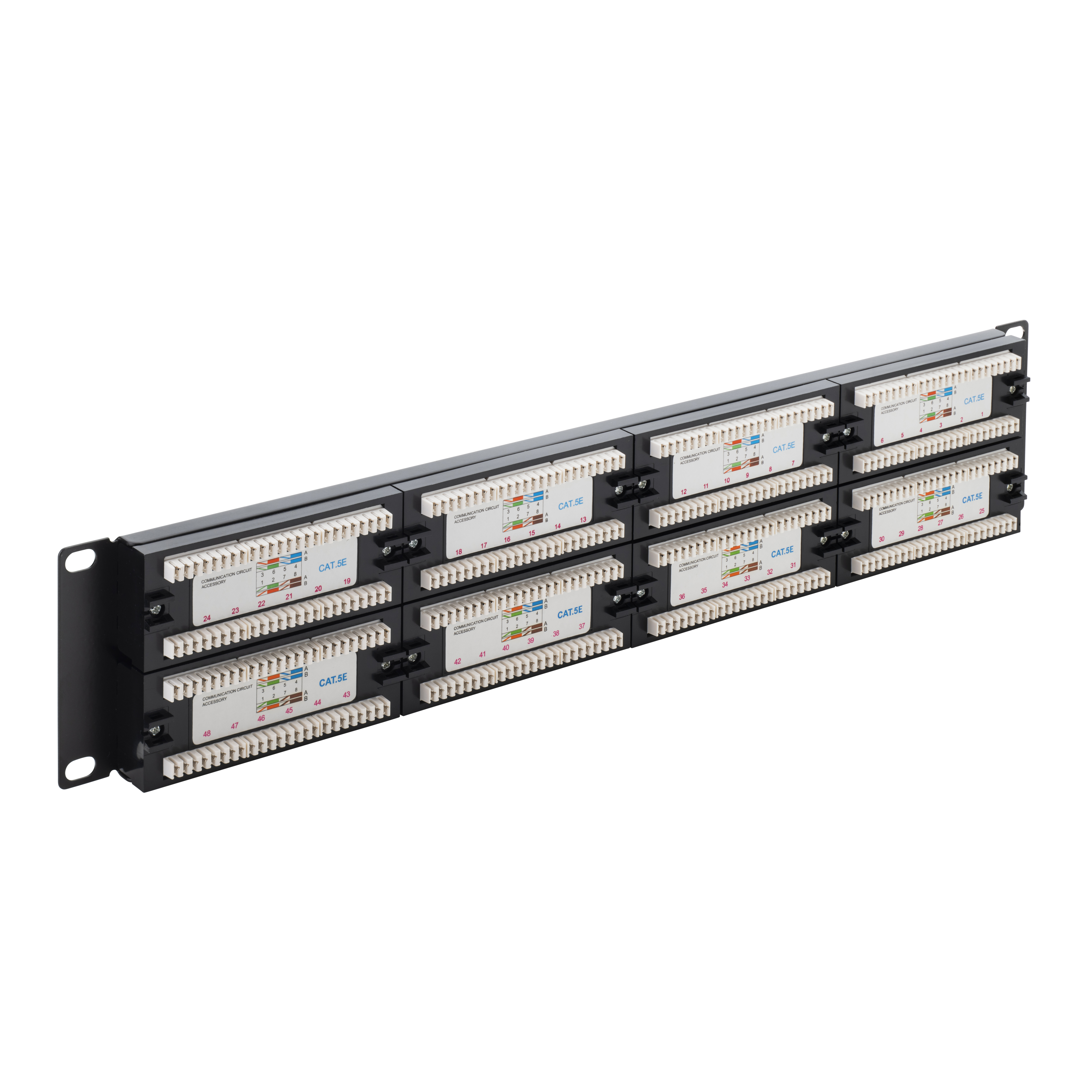

Patch panels are ideal for organising a home or office network. Plug your network cables from your PC's, printers etc into clearly labelled ports on the front of the panel. Terminate network cabling into the IDC terminals on the back of the panel using an IDC tool.
Product Details
- Cat 5e, TIA & ISO standard
- Screen printed port numbering on the front of the panel
- Removable cards held in clear plastic holders on the front of the panel for personalised identification
- Pre-printed port numbering labels on the back of the panel
- High quality pressed steel front panel construction
- Includes cages nuts and cable ties
- Lifetime warranty
...better connected
Technical Specifications
- Barcode: 5035624022393
- Specification: Cat 5e
- Number of ports: 48 Ports
- Termination style: IDC punchdown
- IDC terminals: Feature phosphor bronze & nickel coating
- IDC terminals contact compatibility: 22 - 26AWG solid wires
- Port connection: RJ45 Male
- RJ45 socket minimum life: 750 insertions
- RJ45 socket: 50 Micron gold plated contact pins
- Cable management system: Cable tie
- Wiring specification: T568A & T568B
- Shielding: No
- Rack size: 19"
- Dimensions: 2U, 480 x 33 x 88mm (W x D x H)
- Operating temperature: 0°C - 70°C
- Storage temperature: -40°C - 85°C
- Colour: Black
Packaging Specifications
- Packaging Type: Box
- Packaging Dimensions: 520 x 146 x 60mm (W x D x H)
- Packaging Material: Cardboard
- Packaging Weight: 0.0825Kg
- Product & Packaging Weight: 1.2825Kg
- Carton Dimensions: 350 x 260 x 240mm
- Carton Net Weight: 0.4Kg
- Carton Gross Weight: 12Kg
- Country of Origin: PR China
- Commodity Code: 8536901000
Whats In The Box
- 1 x 48 Port Cat5e Patch Panel
- 4 x Cable Ties
- 8 x Screws
Product Information
- Barcode: 5035624022393
- Commodity Code: 8536901000
- Product Weight: 1.00
...better connected
